Highchartsメモ
これは何か
毎回設定方法を忘れるので、逆引き的なメモを残しておきます。
基本
- まずは CHART CONCEPTS を確認
レシピ
(実際に動くサンプルは一番下にあります)
legendを外したい (c-1)
const config = { legend: { enabled: false }, // ... };
高さを変更したい (c-1)
const config = { chart: { // null(初期値)の場合、描画対象のcontainerの高さが利用される // containerの高さが設定されてない場合は400pxになる height: '200px' }, // ... };
crosshair(照準線)を表示 (c-1)
- https://www.highcharts.com/docs/chart-concepts/tooltip#cross
- http://api.highcharts.com/highcharts/xAxis.crosshair
- Axisのtypeがcategoriesの場合、crosshairの幅と色が通常と異なる
- サンプル(c-1)は、Axisのtypeがcategoriesのケース
- Axisのtypeがcategoriesの場合、crosshairの幅と色が通常と異なる
const config = { xAxis: { crosshair: { } }, // ... };
タイトルを非表示にする (c-2)
const config = { title: { // 空文字を設定 text: '' }, // ... };
Axisを非表示にする (c-2)
const config = { xAxis: { visible: false }, yAxis: { visible: false }, // ... };
どのAxisタイプを利用すべきか
Categories are groups of items, like for example “Apples”, “Pears” and “Oranges”, or “Red”, “Green”, “Blue”, “Yellow”. These categories have that in common that there are no intermediate values.
…
If you find that you can skip category labels by the xAxis.labels.step option, chances are that you are better off using a linear or datetime axis.
An xAxis of the linear or datetime type has the advantage that Highcharts is able to determine how close the data labels should be because it knows how to interpolate. The labels will by default be placed with approximately 100px between them, which can be changed in the tickPixelInterval option. If you have predictable categories like “Item1”, “Item2”, “Item3” or “2012-01-01”, “2012-01-02”, “2012-01-03” etc., linear or datetime axis types combined with an xAxis.labels.formatter would probably be a better choice.
Axisに日付を利用したい
- http://api.highcharts.com/highcharts/xAxis.type
The type of axis. Can be one of linear, logarithmic, datetime or category. In a datetime axis, the numbers are given in milliseconds, and tick marks are placed on appropriate values like full hours or days. In a category axis, the point names of the chart’s series are used for categories, if not a categories array is defined. Defaults to linear.
Axisのタイプにdatetime
を設定 (c-3, c-4)
pointStart
, pointInterval
を利用
const config = { xAxis: { type: 'datetime', }, plotOptions: { series: { pointStart: Date.UTC(2010, 0, 1), pointInterval: 24 * 3600 * 1000 // one day } }, // ... };
seriesのdataでx valueを設定
https://www.highcharts.com/docs/chart-concepts/series
const config = { xAxis: { type: 'datetime', }, series: [{ name: 'Jane', data: [ [Date.UTC(2010, 0, 1), 1], [Date.UTC(2010, 0, 2), 0], [Date.UTC(2010, 0, 3), 4] ] }, { name: 'John', data: [ [Date.UTC(2010, 0, 1), 5], [Date.UTC(2010, 0, 2), 7], [Date.UTC(2010, 0, 3), 3] ] }] // ... };
Axisのタイプにcategory
を設定 (c-5)
const config = { xAxis: { categories: [ '2010-01-01', '2010-01-02', '2010-01-03', ], }, // ... };
背景部分にテキスト、文字、ラインを表示(非表示)したい (c-6, c-7, c-8)
const config = { yAxis: { // 横線を隠す gridLineWidth: 0 }, // ... };
const config = { xAxis, { // 特定エリアに塗りとテキストと追加 plotBands: [{ color: 'rgba(0,0,255,.05)', from: -0.5, to: 0.5, label: { text: 'test' } }], // ... };
const config = { xAxis, { // 特定の位置にラインを追加 plotLines: [{ color: '#f00', value: 0.5, width: 2, }], // ... };
const config = { xAxis, { // xAxisにもグリッドラインを追加 gridLineWidth: 2, tickInterval:1, // この設定は状況に合わせて(カテゴリーかどうか) tickmarkPlacement: 'on', // ... } };
c-0 - c-2
c-3 - c-5
c-6 - c-8

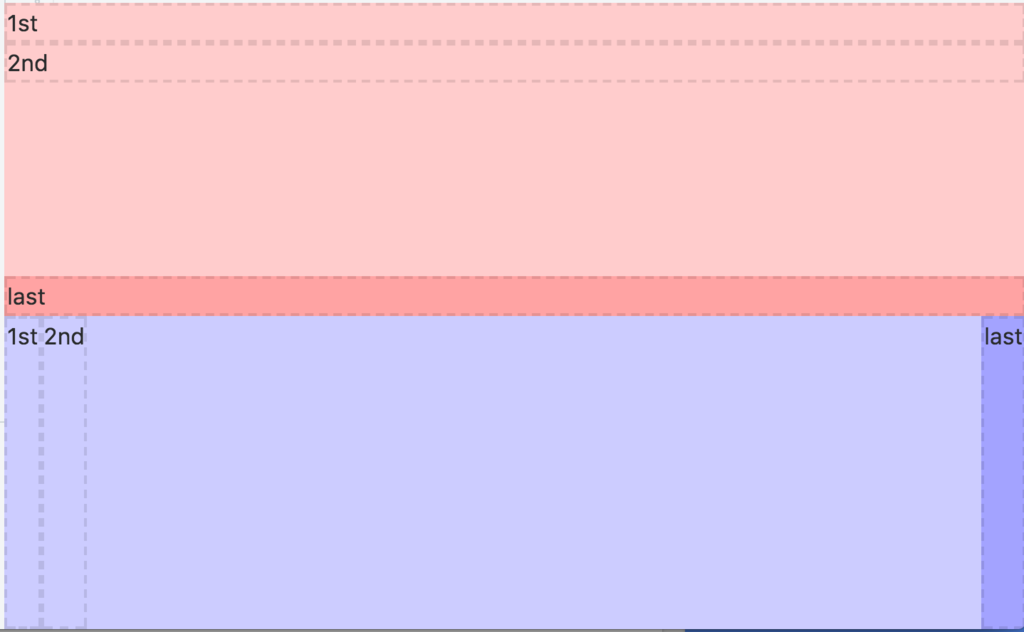

FlexboxとAuto marginを組み合わせる
こんな感じでコンテンツを左右(上下)に配置する時に便利。

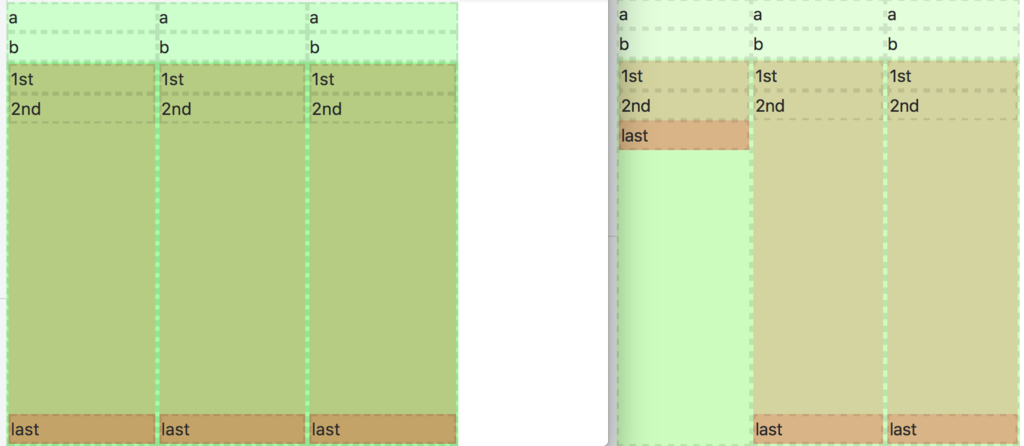

以下のような問題(仕様)があるので、Flexboxを入れ子にした場合かつ、上下揃えをした場合は注意が必要。
css - Chrome / Safari not filling 100% height of flex parent - Stack Overflow
ブロック要素にリンク(a tag)をつける
- ブロック要素内のaタグを、要素いっぱいに広げる
text-indent: -999px;
などでテキストを非表示にする必要がある
- シンプルにaタグでブロック要素を包む
- ブロック要素内のテキストがリンクテキストと同じスタイルにならないように調整する(必要ならば)
a { color: inherit; text-decoration: none; }
など
複数行をTruncate
.note { font-size: 16px; line-height: 1.25; width: 100px; border: 1px solid #000; overflow: hidden; word-wrap: break-word; -webkit-line-clamp: 3; -webkit-box-orient: vertical; display: -webkit-box; height: calc(16px * 1.25 * 3); }
ユーザーからのフィードバックをSlackで受け取る
こういうやつを作りました。
Node.js用のSlack SDKを利用したら簡単にできました。
GitHub - slackapi/node-slack-sdk: Slack Developer Kit for Node.js
以下、Webhook URL発行前提の話です。
const IncomingWebhook = require('@slack/client').IncomingWebhook; const webhook = new IncomingWebhook(SLACK_WEBHOOK_URL); router.get('/send', (req, res) => { // ... new Promise((resolve, reject) => { webhook.send({ attachments: createAttachments({ id: '00001', name: '名前', text: '本文が入ります。本文が入ります。本文が入ります。本文が入ります。本文が入ります。', title: 'タイトル', }) }, (err, header, statusCode, body) => { if (err) { reject(err); } else { resolve('ok'); } }) }) .then((result) => { res.json(result); }) .catch((err) => { // エラー処理 }); }); function createAttachments(params) { return [{ color: '#03A9F4', pretext: 'ユーザーからのフィードバックです', author_name: params.name, title: params.title, text: params.text, fields: [{ title: 'User ID', value: params.id }], ts: Math.floor(Date.now() / 1000) } ]; }
参考URL
カラーコードの変換 (Hex -> RGB)
例えば#ff0000
をrgb(255,0,0)
に変換したい場合。
- カラーコード(文字列)を2文字ずつに分ける
- 16進法を10進法に変換する
import compose from 'lodash/fp/compose'; import map from 'lodash/fp/map'; function hexToRgb(hex: string): string { return compose( (decimals) => `rgb(${decimals.join(',')})`, // hex to decimal map((hex) => parseInt(hex, 16)), // split string every 2 characters // e.g. 'ff0000' -> ['ff', '00', '00'] (hex) => hex.match(/.{1,2}/g), // remove `#` (hex) => hex.substr(1), )(hex); } console.error(hexToRgb('#ff0000')); // -> 'rgb(255,0,0)'
split
も正規表現が使えた。文字を分割する処理に関してはsplit
でもできそう。
null vs undefined
undefined
を使うべきかnull
を使うべきか。コンテキストで使い分けるべきか。
Coding guidelines · Microsoft/TypeScript Wiki · GitHub
contributors向けのガイド。undefined
を使えとのこと。
TSLintにルールもある。
